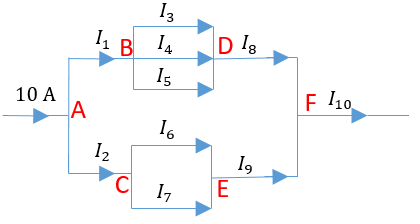

Perhatikan gambar berikut! Jika I 1 ​ = 5 3 ​ I 10 ​ , I 4 ​ = 3 2 ​ I 1 ​ dan I 5 ​ = 4 1 ​ I 9 ​ , maka I 3 ​ = ...

Perhatikan gambar berikut!

Jika  dan  maka

  1. 1 A

  2. 2 A

  3. 3 A

  4. 4 A

  5. 5 A

Iklan

M. Robo

Master Teacher

Jawaban terverifikasi

Iklan

Pembahasan

Berdasarkan hukum I Kirchoff diperoleh, Perhatikan titik cabang A, Perhatikan percabangan E, I 2 = I 9 = 4 A. Jika I 9 diketahui maka I 5 dapat ditentukan Perhatikan titik cabang B,

Berdasarkan hukum I Kirchoff diperoleh,

begin mathsize 14px style I subscript 10 equals 10 blank straight A straight I subscript 1 equals 3 over 5 straight I subscript 10 rightwards double arrow straight I subscript 1 equals 3 over 5 open parentheses 10 close parentheses equals 6 blank straight A straight I subscript 4 equals 2 over 3 straight I subscript 1 rightwards double arrow straight I subscript 4 equals 2 over 3 open parentheses 6 close parentheses equals 4 blank straight A end style

Perhatikan titik cabang A,

begin mathsize 14px style table attributes columnalign right center left columnspacing 0px end attributes row 10 equals cell straight I subscript 1 plus straight I subscript 2 end cell row cell straight I subscript 2 end cell equals cell 10 minus straight I subscript 1 end cell row cell straight I subscript 2 end cell equals cell 10 minus 6 end cell row cell straight I subscript 2 end cell equals cell 4 space straight A end cell end table end style

Perhatikan percabangan E, I2 = I9 = 4 A. Jika I diketahui maka I5  dapat ditentukan

begin mathsize 14px style straight I subscript 5 equals 1 fourth straight I subscript 9 straight I subscript 5 equals 1 fourth open parentheses 4 close parentheses equals 1 blank straight A end style

Perhatikan titik cabang B,

begin mathsize 14px style table attributes columnalign right center left columnspacing 0px end attributes row cell straight I subscript 1 end cell equals cell straight I subscript 3 plus straight I subscript 4 plus straight I subscript 5 end cell row 6 equals cell straight I subscript 3 plus 4 plus 1 end cell row cell straight I subscript 3 end cell equals cell 6 minus 5 end cell row cell straight I subscript 3 end cell equals cell 1 space straight A end cell end table end style
