Ini gimanakak dengan caranya ya kak trimakasih

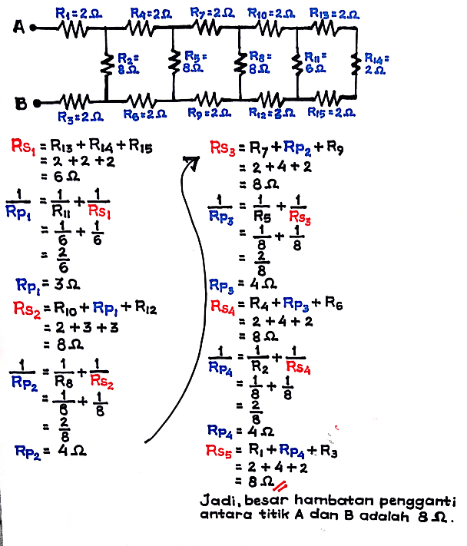

Diketahui : R1 = 2 Ω R2 = 8 Ω R3 = 2 Ω R4 = 2 Ω R5 = 8 Ω R6 = 2 Ω R7 = 2 Ω R8 = 8 Ω R9 = 2 Ω R10 = 2 Ω R11 = 6 Ω R12 = 3 Ω R13 = 2 Ω R14 = 2 Ω R15 = 2 Ω Ditanya : besar hambatan pengganti antara titik A dan B Dijawab : Rs = R13 + R14 + R15 Rs = 2 + 2 + 2 Rs = 6 Ω Rp = 1/R11 + 1/Rs Rp = 1/6 + 1/6 Rp = 2/6 → 6/2 Rp = 3 Ω Rs = R10 + Rp + R12 Rs = 2 + 3 + 3 Rs = 8 Ω Rp = 1/R8 + Rs Rp = 1/8 + 1/8 Rp = 2/8 → 8/2 Rp = 4 Ω Rs = R7 + Rp + R9 Rs = 2 + 4 + 2 Rs = 8 Ω Rp = 1/R5 + 1/Rs Rp = 1/8 + 1/8 Rp = 2/8 → 8/2 Rp = 4 Ω Rs = R4 + Rp + R6 Rs = 2 + 4 +2 Rs = 8 Ω Rp = 1/R2 + 1/Rs Rp = 1/8 + 1/8 Rp = 2/8 → 8/2 Rp = 4 Ω Rtot = R1 + Rp + R3 Rtot = 2 + 4 + 2 Rtot = 8 Ω Jadi, besar hambatan pengganti antara titik A dan B adalah 8 Ω
